NASCAR Pinty’s Series
Racing Radiator Specifications

Starting in 2007, the NASCAR Canadian Tire Series – now NASCAR Pinty’s Series - became the successor to the long-running CASCAR Racing series which boasted the best stock car series in Canada at the national level. NASCAR is the governing body of the Canadian national stock car racing under the NASCAR Hometracks banner which also covers regional NASCAR series in the United States, and international series in Mexico and Europe.
Official website
Visit
High-Performance Radiators
- All-aluminum radiator, using optimally balanced material thickness to minimize weight
- Heavy gauge tubes for increased durability
- In-tank or external aluminum oil cooler as required
- Universal anchor points are available for faster installation and removal - no special tools required
- Integrated lightweight fan brackets are available to provide a secure mounting point that fits a wide range of electric fans
- Universal connection inlet port allowing a variety of coolant hose adaptors to be utilized
RR1010 High-Performance Radiator

Part Number | RR1010 (Base Model) |
---|---|
Radiator style | Crossflow Aluminum Racing radiator |
Overall dimensions | 29" x 19" x 3" |
Radiator Core dimensions | 23.5" x 18.5" x 2.2" |
Row quantity | 2 |
Number of passes | 2 |
Engine oil cooler | Internal |
Oil Cooler dimensions | - |
Location of oil cooler | Driver side |
Inlet Size | -20AN Female |
Inlet location | Upper passenger side |
Outlet Size | 1 3/4" |
Outlet location | Lower passenger side |
Fan brackets | N/A |

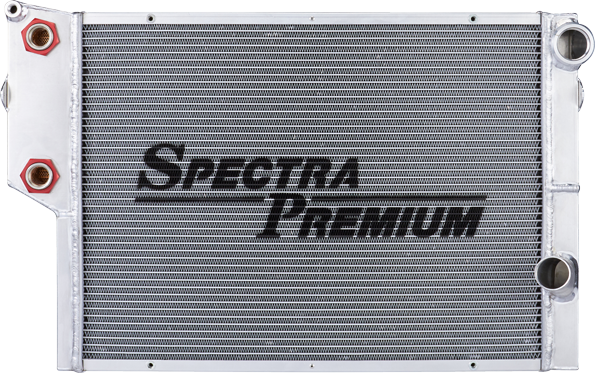

RR1000 High-Performance Radiator (Previously NSCR100)

Part Number | RR1000 |
---|---|
Radiator style | Crossflow Aluminum Racing radiator |
Overall dimensions | 29" x 19" x 3" |
Radiator Core dimensions | 23.5" x 18.5" x 2.2" |
Row quantity | 2 |
Number of passes | 2 |
Engine oil cooler | Internal |
Oil Cooler dimensions | - |
Location of oil cooler | Driver side |
Inlet Size | -20AN Female |
Inlet location | Upper passenger side |
Outlet Size | 1 3/4" |
Outlet location | Lower passenger side |
Fan brackets | Yes |
Special features | Includes brakets on 4 sides of the radiator. These brackets allows installation of Dzus quarter-turn fasteners for the reliable connection of radiator to air box |

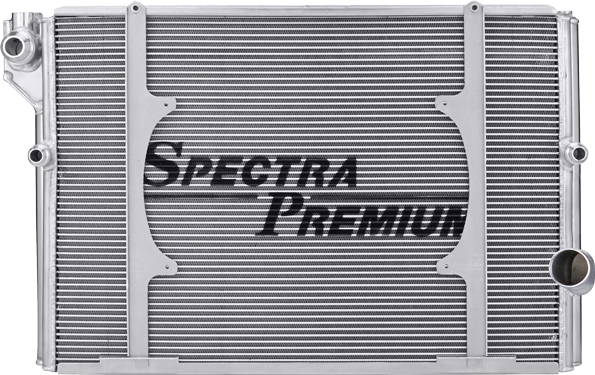

RR1100 High-Performance Radiator

Part Number | RR1100 |
---|---|
Radiator style | Aluminum Racing Radiator |
Overall dimensions | 30" x 18 3/4" x 4.5" |
Radiator Core dimensions | 25.5" x 18" x 2.2" |
Row quantity | 1 |
Number of passes | 1 |
Engine oil cooler | External |
Oil Cooler dimensions | 25.5" x 18" x 3" |
Location of oil cooler | Motor side |
Inlet Size | -20AN Male |
Inlet location | Upper driver side |
Outlet Size | 1 3/4" |
Outlet location | Lower passenger side |
Fan brackets | Yes |
