APC United Late Model
Racing Radiator Specifications
Since 2015, the Ontario-based APC Series has gathered the province’s best stock car drivers in 9 oval races including the Delaware Speedway and the new Jukasa Motor Speedway.
Official website
Visit
High-Performance Radiators
- All-aluminum radiator, using optimally balanced material thickness to minimize weight
- Heavy gauge tubes for increased durability
- In-tank or external aluminum oil cooler as required
- Universal anchor points are available for faster installation and removal - no special tools required
- Integrated lightweight fan brackets are available to provide a secure mounting point that fits a wide range of electric fans
- Universal connection inlet port allowing a variety of coolant hose adaptors to be utilized

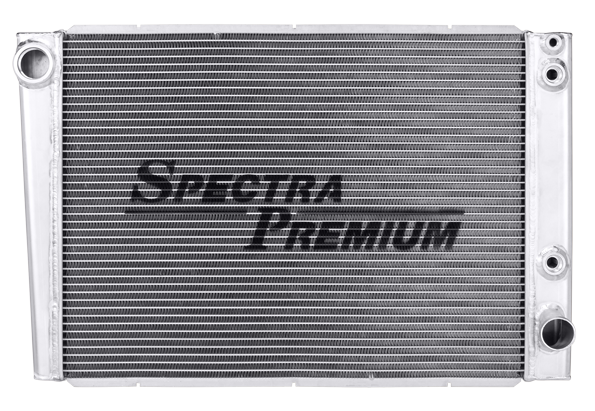

RR1500 High-Performance Radiator for GM Engines
| Part Number | RR1500 |
|---|---|
| Radiator style | Crossflow Aluminum Racing radiator |
| Overall dimensions | 29 3/4" x 19 1/4" x 3" |
| Radiator Core dimensions | 24.5" x 18.5/16" x 2.2" |
| Row quantity | 2 |
| Number of passes | 1 |
| Engine oil cooler | Internal |
| Oil Cooler dimensions | - |
| Location of oil cooler | Passenger side |
| Inlet Size | -20AN Female |
| Inlet location | Upper driver side |
| Outlet Size | 1 3/4" |
| Outlet location | Lower passenger side |
| Fan brackets | N/A |

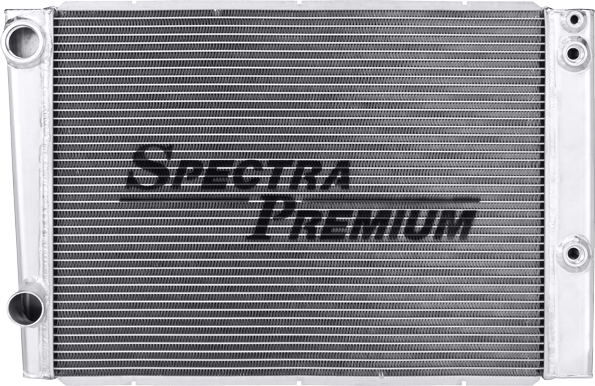

RR1501 High-Performance Radiator for Ford Engines
| Part Number | RR1501 |
|---|---|
| Radiator style | Crossflow Aluminum Racing radiator |
| Overall dimensions | 29 3/4" x 19 1/4" x 3" |
| Radiator Core dimensions | 24.5" x 18.5/16" x 2.2" |
| Row quantity | 2 |
| Number of passes | 2 |
| Engine oil cooler | Internal |
| Oil Cooler dimensions | - |
| Location of oil cooler | Passenger side |
| Inlet Size | -20AN Female |
| Inlet location | Upper driver side |
| Outlet Size | 1 3/4" |
| Outlet location | Lower driver side |
| Fan brackets | Yes |
